| Model | TCM-130 |
| Capacity | 130 Liter |
| Working ability | about 80~100kg/batch |
| Motor of knives | 40HP |
| Motor of bowl | 3HP |
| Hydraulic system | 2HP |
| Knife rotation | 600~4200RPM |
| Bowl rotation | 8/16RPM |
| Electric power supply | 3Phase 220/380V 50/60Hz |
| Dimensions(W×D×H) | 1844x1822x1366mm |
| Weight | 2653KG |
TCM-130
TCM-130
Application
1. Suitable for mixture minced meat、minced fish and ham with seasoning.
2. Suitable for soy protein and gluten protein combine water or oil for emulsify.
3. Suitable for meat and vegetable cutting.
4. Change for obtuse knife to dismantling tissue of soy protein or gluten protein to filose.
Features
1. With 6 edge-knives.
2. Knife speed is adjustable from 600 to 4200 r.p.m.
3. Bowl completely in stainless steel. Two speeds for bowl.
4. Touch screen and H.M.I. control system. PLC system.
5. Hydraulic mechanism for lift cover and discharge.
6. Motor safety system.
Description
Option

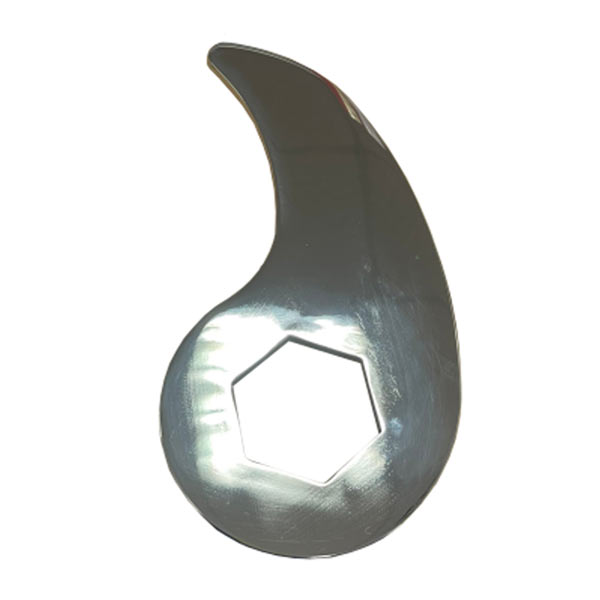

TCM-130 Cutter knife
【Features】
- Manufactured by KNECHT from Germany.
- Sharp and durable.
【Specifications】
R244(6 pieces/1 set)
TCM-130 obtuse knife
【Features】
- Used in soybean, wheat and other textured fibrin from lumps and flakes into fine cuts.
【Specifications】
knife head and T4.0 mm obtuse knife (3 pieces/1 set)
Consumable
Food grade grease
【Features】
- To recommend be used to lubricating parts that is suitable for incidental food contact.
- Excellent for anti-rust properties over a wide temperature range.
- Excellent for water resistance, steam resistance and strong metal surface adhesion.
【Specifications】
- TOTAL NEVASTANE X MF2
